NDI Video Encoder Decoder
>
|
| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Model Number | 70H |
Hot sell 2020 new productsip broadcast video encoderbulk buy from china

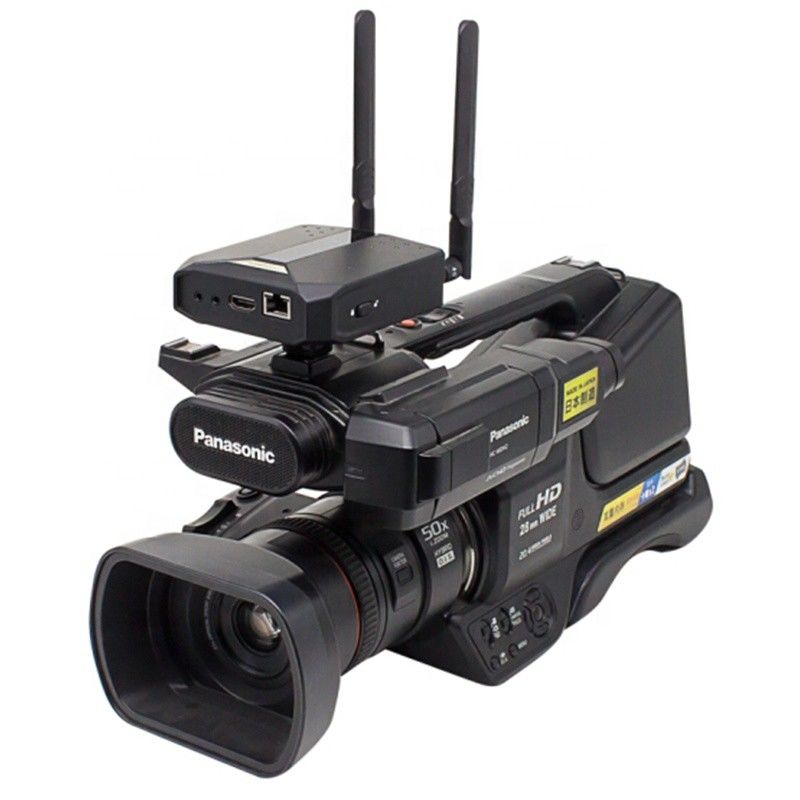

TC-70H HD encoder is our newest professional HD audio & video encoding device with powerful functionality. It support H.264/H.265 encoding,dual-Streaming data.It is equipped with 1 channel HDMI input .Its high integration and cost-effective design make this device widely used in variety of digital distribution systems. Support Ethernet/4G/WIFI to RTMP streaming.
|
Product parameters |
|
|
Name |
HDMI 4G video encoder |
|
Series |
70H |
|
Video format |
MP4 |
|
Compression format |
H.264/H.265 |
|
Audio compression |
AAC(48K) |
|
Video input format |
720p: 25/30/50/60/120 fps |
|
1080i:50/60 fps |
|
|
1080p:25/30/50/60 fps |
|
|
Output resolution |
1920*1080/1280*720/848*480 |
|
960*540/640*360/480*270 |
|
|
Video resolution |
Maximum support for 1080p60 |
|
Memory card type |
TF card |
|
Memory card capacity |
Maximum support 128G |
|
WiFi |
2.4G |
|
4G network |
All Netcom |
|
SIM card type |
Nano SIM Card |
|
Network feature |
1xRJ45 for 10/100Mbps Ethernet |
|
Power Interface |
DC5V, 2000MA [Micro USB interface] |
|
Power frequency |
50HZ/60HZ |
|
Battery capacity |
3.7V / 4000mAH |
|
Maximum power consumption |
4W |
|
Weight |
260g |
|
Dimensions (mm) |
110*93*30 |
|
Language |
Simplified Chinese/English |
|
Operating system |
Android 4.1+ & IOS 7+ |
|
Network protocol |
HLS/RTMP/P2P |
|
Working temperature |
0℃~45℃ |
|
Working humidity |
15%~85% |
|
Storage Temperature |
5℃~40℃ |
|
Support band |
FDD LTE: Band 1,Band 3,Band 8,all bands with diversity TDD LTE: Band39,Band40,Band41(38),all bands with diversity |
