Webcasting independent audio input USB storage iptv streaming encoder

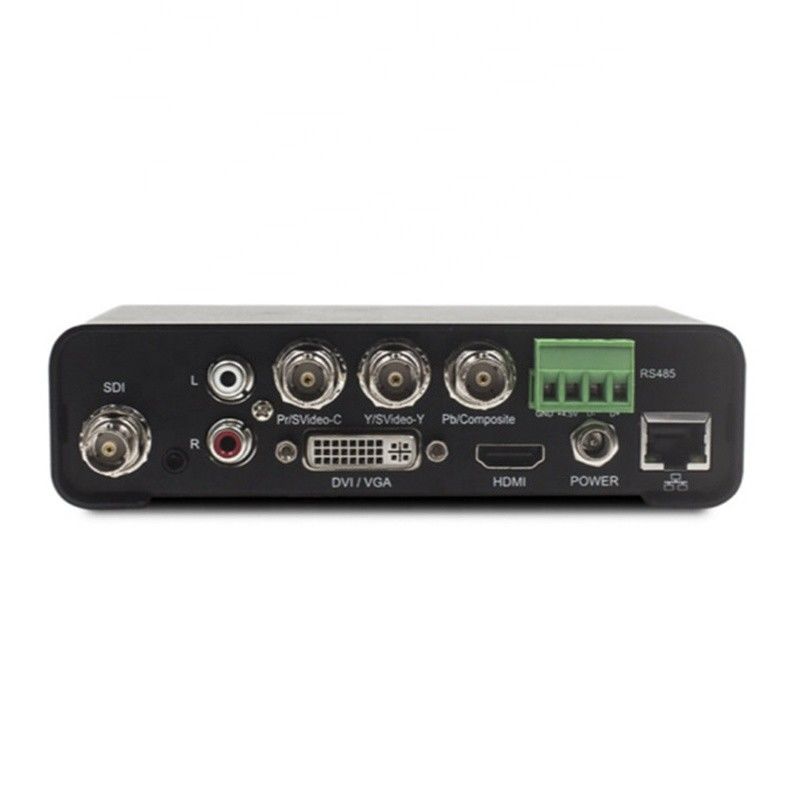

TC-6C0 live streaming video encorder is a professional audio and video encoding product, which
supports HDMI/DVI/VGA/AV/Component/CVBS/Left and Right audio channels inputs,compatible with different audio and video signal output devices, H.264 encoding. The code rate is adjustable, and the picture quality can be controlled. This device has only 1 Frame Delay,which ensures the Live streaming frequently.
It is easy to install, plug&play, and there is no computer hardware compatibility issues.Support HTTP/RTSP/RTMP/TCP/UDP streaming.
|
6C0 Product Series Hardware Specification |
|
|
Model |
6C0 |
|
Max. FPS |
60/50fps @ 1920x1080p |
|
Recording Mode |
Hardware Compression, Real-Time Mode |
|
Input Interfaces |
Video 1 x BNC for 3G / HD / SD-SDI 3 x BNC for YPbPr /CVBS/S-Video 1 x DVI-I for DVI-D /HDMI and DVI-A/ VGA 1 x HDMI Audio 1xStereo audio through 1x RCA for Analog L/R audio SDI/HDMI/DVI-D embedded audio 1 x 3.5 mm phone jack
|
|
Video Feature |
H.264/AVC , Main / High Profile Configurable bit rate up to 10Mbps Supported Resolutions Input: 1920x1080(P60/P50/P30/P25/P24/i60/i50),1280x720(P60/P50), 1280x1024(P60),1280x960(P60),1024x768(P60),800x600(P60), 720x480(P60/i60),640x480(P60),720x576(P50/i50) Output: Resize Range from 128x128 to 1920x1080 *Output Include Down Scaling. |
|
Audio Feature |
AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate : 48KHz, 16bit |
|
Network Feature |
1x RJ45 for 100/1000Mbps Ethernet DHCP client |
|
Supported Streaming Protocol |
TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP (RTSP Elementary Stream) RTMP(Publish) |
|
Misc. Features |
1 Frame Delay Dynamic Parameter setting RS-485 1x USB 2.0 Host for USB storage Web UI for system configuration Firmware upgradable LED indicator Status With Power Recycle |
|
Record Format |
TS |
|
System Requirement |
|
|
Power Supply |
DC 12V (With DC Adapter) |
