NDI Video Encoder Decoder
>
|
| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Model Number | 10H |
Independent audio IP streaming professional video encoder for webcasting

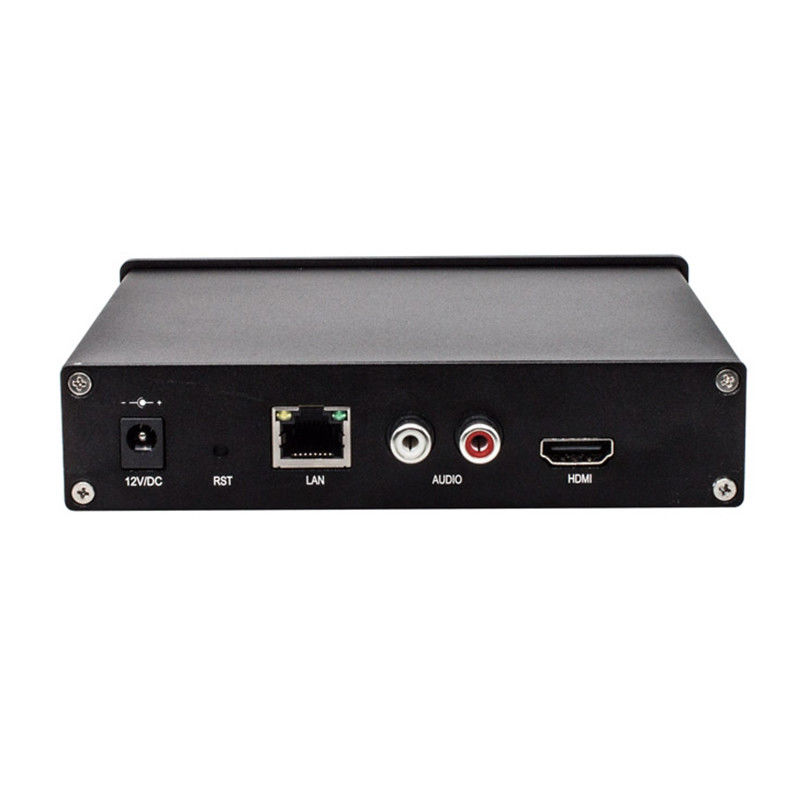

TC-10H LED Screen H.265 Encoder features high performance, low latency and ultra-low bit rates for broadcast level , and adopts OLED screen real-time display, state-of-the-art compression cores to realize H.265 encoding. TC-10H Encoder is equipped with HDMI Embedded Audio input interfaces, which can Perfect compatibility with multiple devices. Moreover, it is coupled with Independent Audio, both internal and external inputs,support L/R audio channels inputs,support adjusting volume independently, support encoding alone without video signal, provide various audio bit rate output,and also simplify the Network architecture in carrying out high reliability solutions.
It has high integration and practicability, widely applied to live streaming and variety of occasions.
|
Model |
TC-10H HDMI |
|
Video&Audio Input |
|
|
Video Input |
1XHDMI Support HDCP |
|
Input Resolution |
1080P/1080i/720P/1920x1200 etc., |
|
Audio Input |
1xHDMI Embedded Audio |
|
Audio Output |
1xAudio Output |
|
Video&Audio Parameters |
|
|
Compression Format |
H.264 Baseline Profile H.264 Main Profile H.264 High Profile H.265 Main Profile |
|
Video Code Rate |
64Kbps – 20Mbps |
|
Video Frame Rate |
60fp |
|
Audio Compression |
AACLC |
|
Audio Frame Rate |
48Kbps |
|
Net Parameters |
|
|
Network feature |
Ethernet 10/100Mbps RJ45 |
|
Stream Type |
Main and Sub Stream |
|
Configuration Management |
Web UI for system configuration Firmware upgradable
|
|
Network Protocol |
HTTP/TS/RTSPV2/RTMP |
|
Display |
|
|
Display Method |
OLED Screen |
|
Displayed Content |
IP address, Working Status, Streaming Method |
|
General |
|
|
Power |
DC 12V |
|
Power Consumption |
<5W |
|
Working temperature |
-20℃~+60℃ |
|
Working humidity |
<90% |
|
Dimensions (mm) |
144mm x 120mm x 31.2mm |
|
Weight |
0.25kg |
