NDI Video Encoder Decoder
>
|
| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Model Number | 6C0 Mini |
Factory sales lunch event live streaming wifi streaming best free video encoder

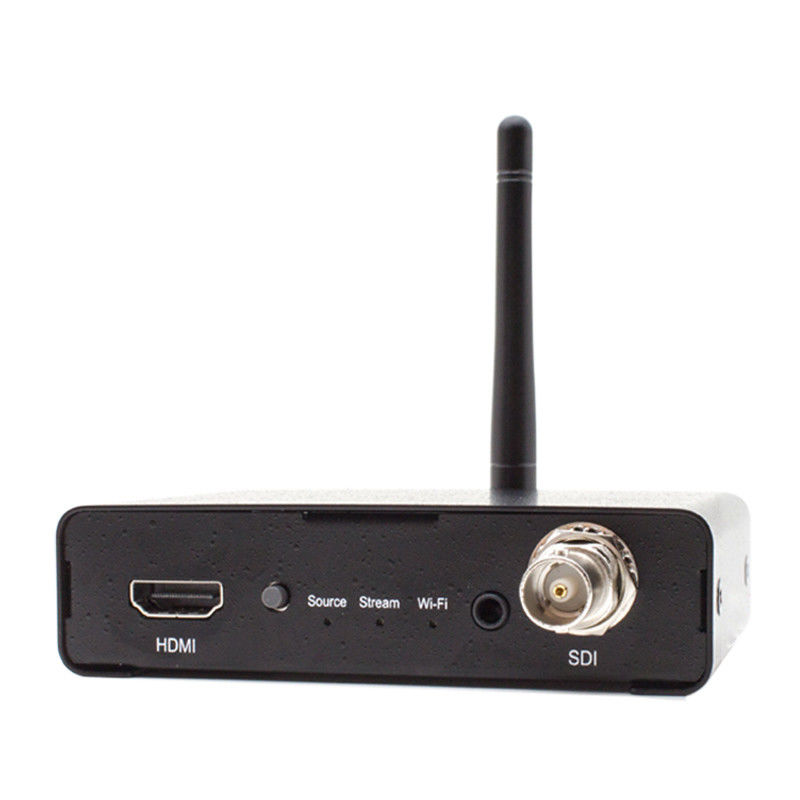

TC-6C0 Mini live streaming video encorder is a professional audio and video encoding product, which supports HDMI/DVI and independent audio channels inputs,compatible with different audio and video signal output devices, H.264 encoding. The code rate is adjustable, and the picture quality can be controlled. This device has only 1 Frame Delay,which ensures the Live streaming frequently.
It is easy to install, plug&play, and there is no computer hardware compatibility issues.Support HTTP/RTSP/RTMP/TCP/UDP streaming.
|
Model |
6COMiniWIFI |
|
Max.FPS |
60/50fps@1920x1080p |
|
Recording Mode |
Hardware Compession,Rea-Time Mode |
|
Input Interfaces |
Video |
|
1xHD MI |
|
|
1xSDI |
|
|
Audio |
|
|
1x3.5mm stereo analog audio |
|
|
SD/HDMI embedded audio |
|
|
Video Feature |
H.264/AVC,Baseline/Main/High Profile |
|
Configurable bit rate up to 10Mbps |
|
|
Supported Resolutions: |
|
|
Input |
|
|
1920x1080(P60/P50/P30/P25/P24/i60/i50 |
|
|
1280x720(P60/P50),1280x1024(P60),1280x960(P60) |
|
|
1024x768(P60),800x600(P60),720x480(P60/i60) |
|
|
640x480(P60),720x576(P50/i50) |
|
|
Output |
|
|
Resize Range from 128x128 to 1920x1080(P60) |
|
|
*Output Incdude Down Scaling. |
|
|
Audio Feature |
AAC-LC |
|
Configurable bit rate range from 32Kbps to 384Kbps |
|
|
Sample rate: 48KHz,16bit |
|
|
Network Feature |
1xRJ45 for 10/100Mbps Ethemet |
|
DHCP client |
|
|
Wifi |
|
|
802.11b/g/n |
|
|
Support 150Mbps PHY rate |
|
|
Support Streaming protocol |
TS over TCP/UDP(unicast&multicast) |
|
RTSP over HTTP/TCP/UDP(RTSP Elementary Stream) |
|
|
RTMP(Publish) |
|
|
HLS |
|
|
Misc.Features |
1 Frame Delay |
|
Dynamic Parameter seting |
|
|
Web UI for system configuration |
|
|
Firmware upgradable |
|
|
LED indicator |
|
|
Status With Power Recycle |
|
|
System Requirement |
|
|
Power Supply |
DC 12V(With DC Adapter) |
