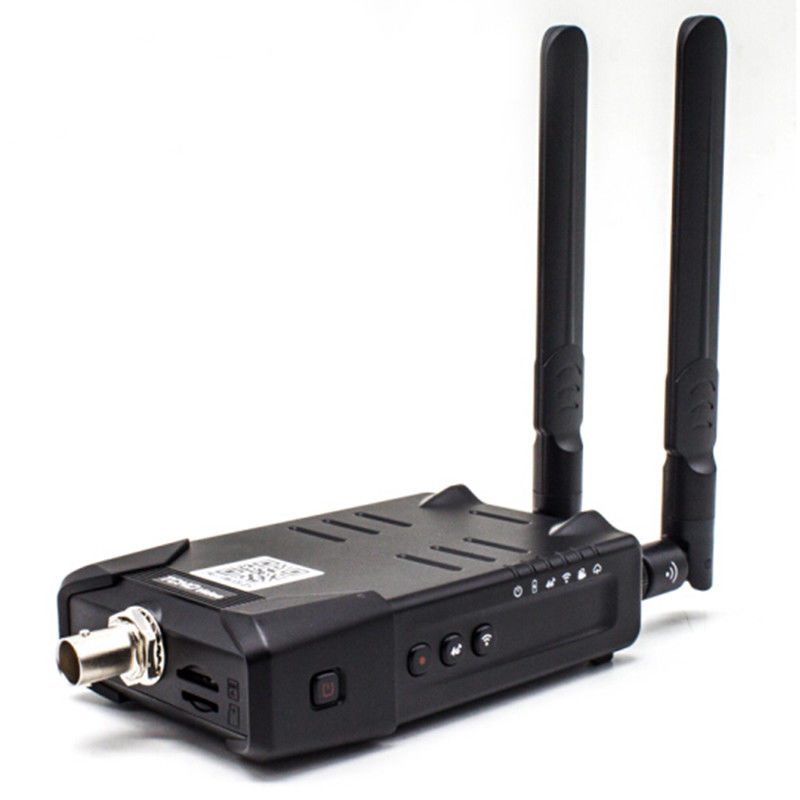

Drone live streaming app control 4g and wifi windows video encoder
TC-60S HD encoder is our newest professional HD audio & video encoding device with powerful functionality. It support H.264/H.265 encoding,dual-Streaming data.It is equipped with 1 channel SDI input .Its high integration and cost-effective design make this device widely used in variety of digital distribution systems. Support 4G/WIFI to RTMP streaming.
|
Name |
SDI 4G video encoder |
|
Series |
60S |
|
Video format |
MP4 |
|
Compression format |
H.265/H.264 |
|
Audio compression |
AAC(48K) |
|
Video input format |
720p: 25/30/50/60/120 fps |
|
1080i:50/60 fps |
|
|
1080p:25/30/50/60 fps |
|
|
Output resolution |
1920*1080/1280*720/848*480 |
|
960*540/640*360/480*270 |
|
|
Video resolution |
Maximum support for 1080p60 |
|
Memory card type |
TF card |
|
Memory card capacity |
Maximum support 128G |
|
WiFi |
2.4G |
|
4G network |
All Netcom |
|
SIM card type |
MicroSIM Card |
|
Power Interface |
DC5V, 2000MA [Micro USB interface] |
|
Power frequency |
50HZ/60HZ |
|
Battery capacity |
3.8V / 4000mAH |
|
Maximum power consumption |
4W |
|
Weight |
260g |
|
Dimensions (mm) |
110*70*30 |
|
Language |
Simplified Chinese/English |
|
Operating system |
Android 4.1+ & IOS 7+ |
|
Network protocol |
HLS/RTMP/P2P |
|
Working temperature |
0℃~45℃ |
|
Working humidity |
15%~85% |
|
Support band |
FDD LTE: Band 1,Band 3,Band 8,all bands with diversity TDD LTE: Band39,Band40,Band41(38),all bands with diversity |
