NDI Video Encoder Decoder
>
|
| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Certification | CE |
| Model Number | 80HS |
2018 hot sale Webcasting independent audio input USB storage iptv streaming encoder

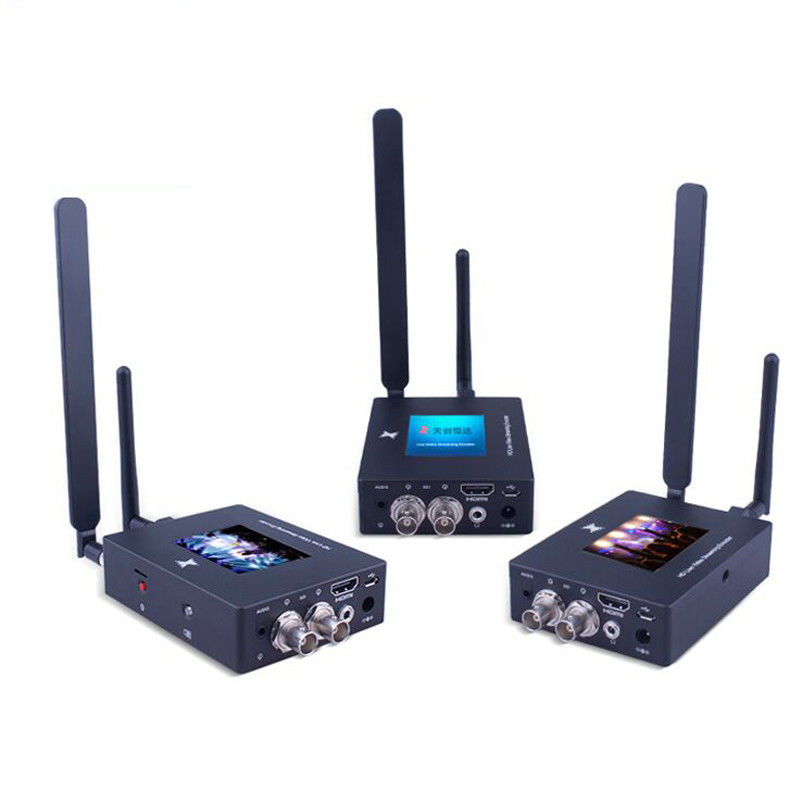

TC-80HS HD Streaming Encoder can encode various video sources of high-definition or standard definition audio and video information, it can real-time push the audio and video information to live service platforms via 4G, WIFI or wired network, thus to achieve live streaming of business activities, education training, medical operation, sports evens broadcasting, wedding ceremonies, UAV aerial photography, scenic tourism, entertainment and other activities.
Power | Input | 12V DC/2A |
MicroUSB | 5V 2A, Single Channel Only | |
Ext. Battery | Sony BP Series(BP-U90/U60/U30), Optional | |
Int. Battery | 2xLion polymer rechargeable battery,2x2800mAH | |
Network | Video Streaming | RTMP,RTSP is option |
WiFi | 802.11b/g/n,2.4Ghz | |
4G | LTE all band,Telecom/China Mobile/Netcom, FDD1/3/8,TDD38/39/40, USB 4G LTE Dongle optional | |
LAN | 100Base-T | |
Configuration | Config | Wechat,mini-program |
WEB | LAN or WiFi | |
LCD | Menu | |
Video | Encoder | H.264/AVC MP |
Resolution | 1920×1080@25/30/50/60fps 1280×720@50/60fps | |
Bitrate | 256K-10Mbits/s | |
Frame Rate | 25/30 | |
Audio Input | Sampling | 44.1K |
Encoder | AAC | |
Channel | 2,with AGC | |
Input | 0.7VRMS | |
MIC | 2.2V, 2.2K Bias,60db gain adj. | |
Interface | SDI Input | 1 x BNC, 75ohm,800mVpp |
SDI loop out | 1 x BNC, 75ohm,800mVpp | |
HDMI Input | 1 x Type A | |
Audio In | 1 x 3.5mm Jack,2 CH | |
Audio Out | 1 x 3.5mm Jack,2 CH | |
LAN | 1 x RJ45,10/100 Ethernet | |
4G Antenna | 1 x SMA boat antenna | |
Light | LED | |
USB | 3xUSB | |
SIM | Nano SIM | |
Storage | MicroSD/TF | |
Button | 2 | |
Sound | Beep | |
Display | 2.4” TFT LCD | |
Video Input | SDI | SD SDI,HD SDI,3G SDI,SMPTE 296M/274M/292M |
HDMI | 1.4a | |
Audio | SDI/HDMI Embedded Audio | |
Physical | Size | 102 x82 x 30mm,Sand blast black aluminum |
Weight | 320g(Include battery) | |
Temp. | 0°C to 45°C |
