| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Model Number | TC560N1 P30 |

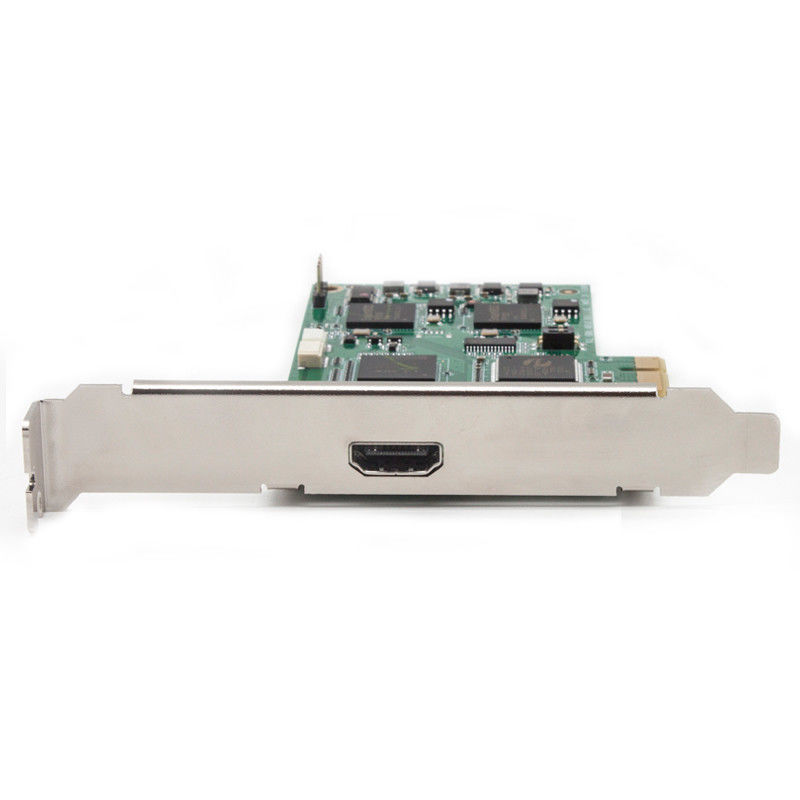

High quality 4K UHD live streaming live streaming game capture pci tv capture card
TC560N1 P30 with 1xHDMI input, support from 4K30P to 720x576i50 full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.
|
Model |
TC56ON1P30 HDMI |
|
Max.FPS |
4096x2160p30/25fps in 4096x2160p@30/25fps out |
|
Recording Mode |
Software Compression,Real-Time Mode |
|
Dimension |
164.49x96.51(mm) |
|
Interface |
PClx4(Gen2) |
|
video Input |
1xHDMl 1.4B |
|
Display Video Format |
WV12,NV12,YUY2,RGB24,RGB32 |
|
video RAW Data Resolution |
HDMI 1.4B 4096x2160@30/25/24fps 3840X2160@30/25/24FPS 2560x1600@60fos 2048x1152@60fps 2560x1440p@60fps 1920x1440p@75/60/50fps 1920x1200p@85/75/60/50fps 1920X1080P@60/50fps 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/5Ofps 1280x1024p@60fps 1280x960p@60fps 1024X768p@60fps 800x600p@60fps 640x480p@60fps 720x480p@60fps 720x576p@50fps 720x480i@60fps 720x576i@50fps |
|
Recording Video Format |
H.264 (Software Compression) |
|
Recording Video Resolution |
HDMI 1.4B 4096x2160@30/25/24fps 3840x2160@30/25/24fps 2560x1600@60fps 2048x1152@60fps 2560x1440p@60fps 1920x1440p@75/60/50fp 1920x1200p@85/75/60/50fps 1920x1080p@60/5Ofps 1920X1080P@30/25/24FPS 1920x1080i@60/50fps 1280x720p@60/5Ofps 1280x1024p@60fps 1280x960p@60fps 1024x768p@6Ofps 800x600p@60fps 640x480p@60fps 720x480p@60fps 720x576p@50fps 720x480i@60fps 720x576i@50fps |
|
Audio Input |
1xHDMI Embedded audio |
|
Audio Format |
Stereo/ 16-bit /32000-48000Hz |
|
WatchDog |
Yes |
|
Multiple Cards |
∞ |
|
SDK |
VC++ /C# /.NET/ VB /V4L2 |
|
System Requi rement |
|
|
OS Support |
Windows XP/ Vista /Windows 7 Windows 8 /Windows 8. 1/ Windcws 10 Linux 2.6.14 or Higher (32-bit and 64-bit ) |
