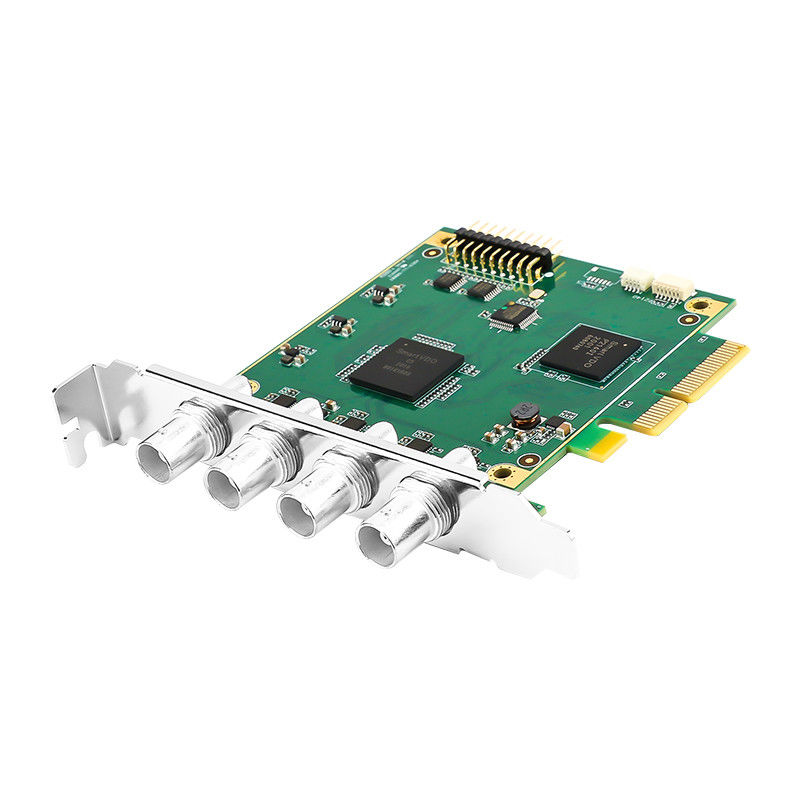

4 Channel SDI Broadcast Vmix Compatible Capture Cards For Live Streaming

Model

400N4 SDI

Max Input Resolution

In 1920×1080p@60/50 → Out1920×1080p@60/50

Recording Mode

Software Compression, Real-Time Mode

Dimension

93.98×91.5 mm

Interface

PCIe×4( Gen2 )

Video input

4×SDI

Video Raw Data Format

YV12, NV12, YUY2, RGB24, RGB32, P010,

Video Raw Data Resolution

3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps

Recording Video Format

H.264 (Software Compression)

Color Format

Capture/Preview
4:4:4 8bit RGB24
4:4:4 8bit RGB32
4:2:2 8bit YUV2
4:2:0 8bit YV12,NV12
4:2:0 10bit P0110

Video Processing

Video, Audio and VANC Capture

Video Cropping and Scaling

Auto Signal Detection

Deinterlace Engine

Multi Instances

Audio Input

4×Stereo Embedded Audio

Audio Format

Stereo / 16-bit / 32000 ~ 48000Hz

Software Support

Vmix/OBS/ZOOM/Skype/Teams/Discord/Slack/Cisco Webex/GoTo Meeting

*DirectShow/V4L2 Compatible Software

System Requirement

OS Support

Windows 7 / Windows 8 / Windows 8.1 / Windows 10/ Windows11

Linux 4.8 or Higher ( 32-bit and 64-bit )

Linux ARM

nVIDIA Jetson TX2,NANO,AGX Xavier, Xavier NX
