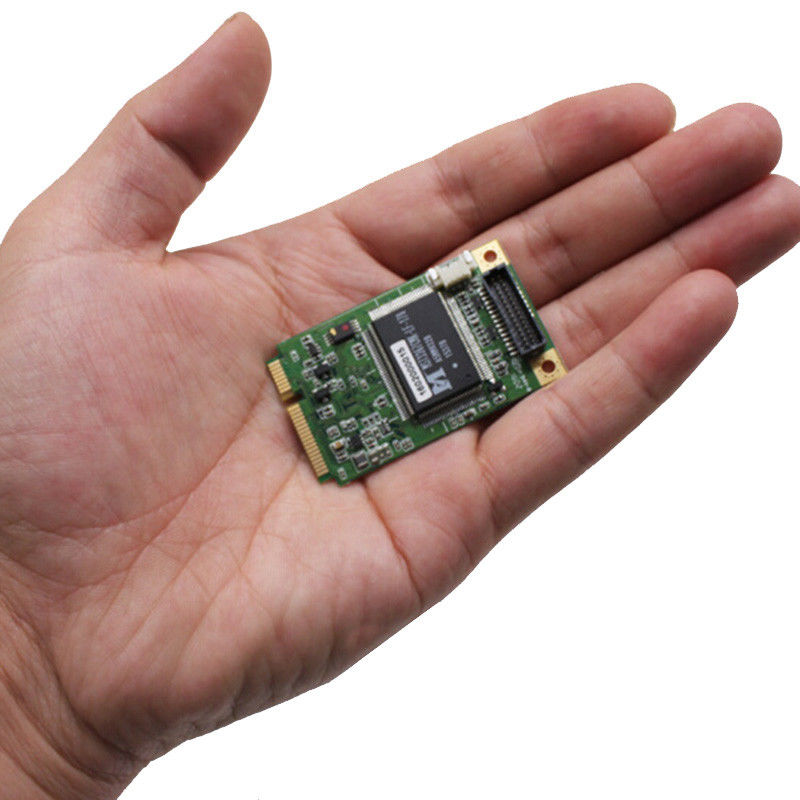

PCIE mini laptop 1080P60 live streaming 1 channel pci hd video capture card
TC540N1 MC SDI with 1xSDI input and 1xSDI loop through, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.
|
Max.FPS |
1920x1080p@60/50fps in 1920x1080p@30/25fps out |
|
Recording Mode |
Software Compression,Real-Time Mode |
|
Dimension |
30x50.95 (mm) |
|
Interface |
Minicard (PClex1) |
|
Video Input |
1XSDI |
|
Video output |
1xSDI (Loop-Through) |
|
Video RAW Data Format |
YV12,NV12,YUY2,RGB24,RGB32 |
|
Display Video Resolution |
HD-SDI 1920x1080p@30/29.97/25/24/23.97fps 1920x1080i@60/59.94/50fps 1280x720p@60/59.94/50fps SD-SDI 720x480i@60/59.94fps 720x576i@50fps |
|
Recording Video Format |
H.264 (Software Compression) |
|
Recording Video Resolution |
HD-SDI 1920x1080p@30/29.97/25/24/23.97fps 1920x1080i@60/59.94/50fps 1280x720p@60/59.94/50fps SD-SDI 720x480i@60/59.94fps 720x576i@50fps |
|
Audio Input |
1xSDI Embedded Aud io Audio L/R (Through Wafer Connector) |
|
Audio output |
1xSDl Embedded Audio |
|
Audio Format |
Stereo /16-bit /32000-48000Hz |
|
Multiple Cards |
∞ |
|
SDK |
Support API: DirectShow,V4L2,FFmpeg,Gstreamer Support Language: C++,C#,.NET,Visual Basic,Qt,Delphi |
|
Operation System Support |
Windows XP/ Vista /Windows 7 Windows 8 /Windows 8.1/Windows 10 Linux 2.6.14 or Higher (32-bit and 64-bit) |
