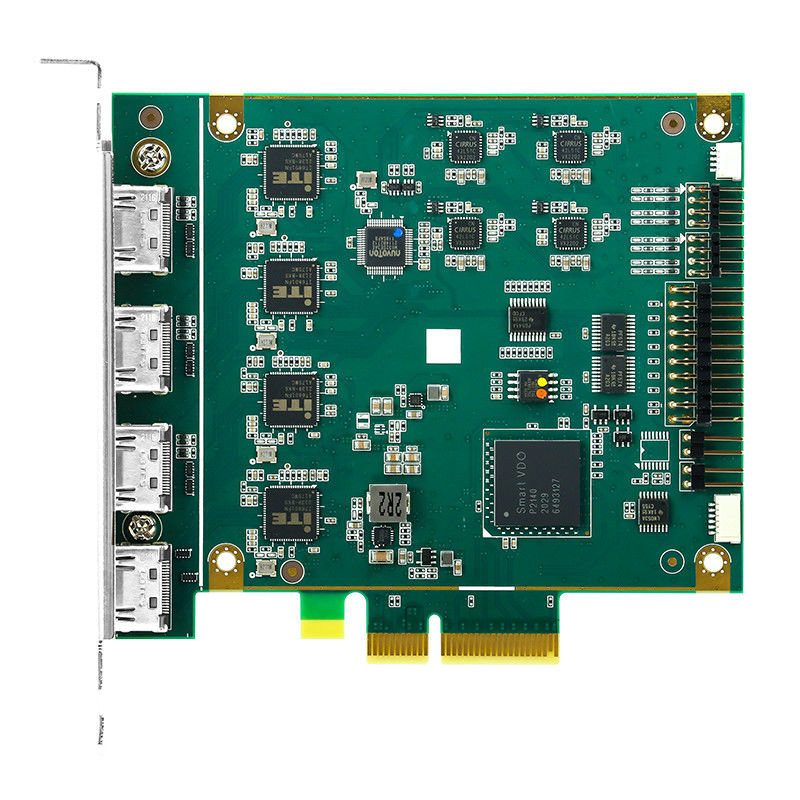

4 channel H.264 Real Time HDMI pcie video capture card
TC400N4HDMI with 4HDMI inputs, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.
|
Model |
400N4 HDMI |
|
Max Input Resolution |
In 1920×1080p@60/50 → Out1920×1080p@60/50 |
|
Recording Mode |
Software Compression, Real-Time Mode |
|
Dimension |
111.74×101.01 mm |
|
Interface |
PCIe×4( Gen2 ) |
|
Video input |
4×HDMI |
|
Video Raw Data Format |
YV12, NV12, YUY2, RGB24, RGB32, P010, |
|
Video Raw Data Resolution |
HDMI |
|
Recording Video Format |
H.264 (Software Compression) |
|
Color Format |
Capture/Preview |
|
Video Processing |
Video, Audio and VANC Capture Video Cropping and Scaling Auto Signal Detection Deintelace Engine Multi Instances |
|
Audio Input |
4×Stereo Embedded Audio |
|
Audio Format |
Stereo / 16-bit / 32000 ~ 48000Hz |
|
Software Support |
Vmix/OBS/ZOOM/Skype/Teams/Discord/Slack/Cisco Webex/GoTo Meeting *DirectShow/V4L2 Compatible Software |
|
System Requirement |
|
|
OS Support |
Windows 7 / Windows 8 / Windows 8.1 / Windows 10/ Windows11 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2,NANO,AGX Xavier, Xavier NX |
