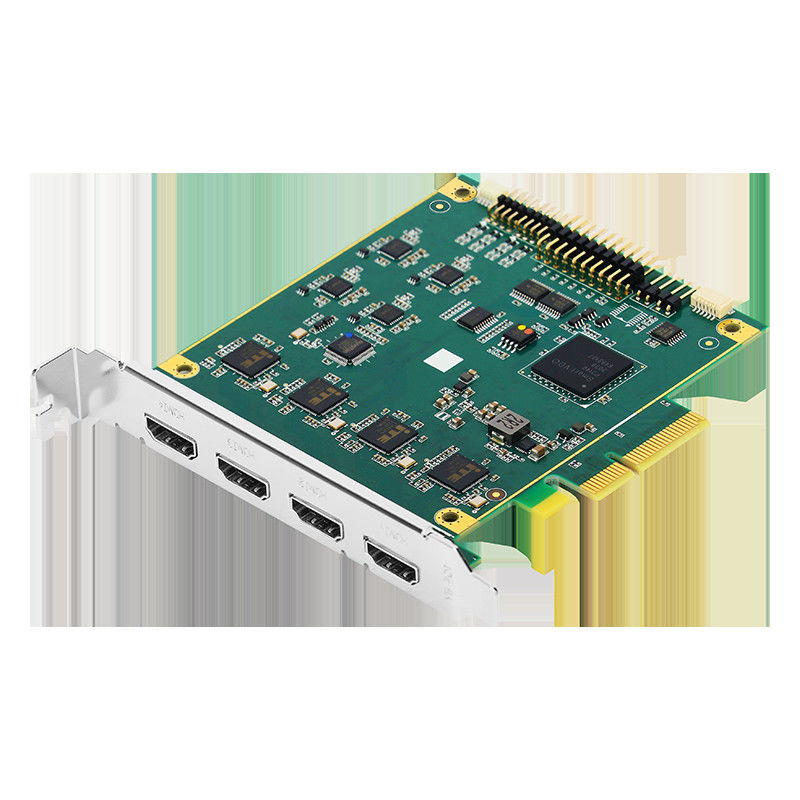

PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels
  • PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels
  • PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels
  • PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels
  • PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels
PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels

PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels

Place of Origin Beijing, China
Brand Name TCHD
Product Details
Channels:
4
Video Compression Format:
H.264
SDK:
SDK Support
Compression Mode:
Software Compression
Support Windows:
Windows Linux
Nature:
1080P60 Live Streaming
Input:
HDMIx4
Output:
HTTP/RTMP/RTSP
Video Encoding:
H.264
Resolution:
1920x1080P60
Type:
PCIe 4U
Application:
Live Streaming, Webcasting,, Video Conference, Game Capture
High Light:

video capture card Four Channels

,

video capture card sdk support

,

hdmix4 input video capture card

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$480.00 - $560.00/pieces
Packaging Details
Carton box
Supply Ability
500 Piece/Pieces per Month
Product Description

HDMI SDK support PCIe 4U H.264 video conference 1080p video capture card

PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels 0



Introduction

 PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels 1

TC400N4HDMI with 4HDMI inputs, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.

Model

400N4 HDMI

Max Input Resolution

In 1920×1080p@60/50 → Out1920×1080p@60/50

Recording Mode

Software Compression, Real-Time Mode

Dimension

111.74×101.01 mm

Interface

PCIe×4( Gen2 )

Video input

4×HDMI

Video Raw Data Format

YV12, NV12, YUY2, RGB24, RGB32, P010,

Video Raw Data Resolution

HDMI
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

Recording Video Format

H.264 (Software Compression)

Color Format

Capture/Preview
4:4:4 8bit RGB24
4:4:4 8bit RGB32
4:2:2 8bit YUV2
4:2:0 8bit YV12,NV12
4:2:0 10bit P0110

Video Processing

Video, Audio and VANC Capture

Video Cropping and Scaling

Auto Signal Detection

Deintelace Engine

Multi Instances

Audio Input

4×Stereo Embedded Audio

Audio Format

Stereo / 16-bit / 32000 ~ 48000Hz

Software Support

Vmix/OBS/ZOOM/Skype/Teams/Discord/Slack/Cisco Webex/GoTo Meeting

*DirectShow/V4L2 Compatible Software

System Requirement

OS Support

Windows 7 / Windows 8 / Windows 8.1 / Windows 10/ Windows11

Linux 4.8 or Higher ( 32-bit and 64-bit )

Linux ARM

nVIDIA Jetson TX2,NANO,AGX Xavier, Xavier NX
Main Features

 PCIe 4U VMix Streaming Video Capture Card With 4 HDMI Inputs Four Channels 2
