| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Model Number | UV6000 |

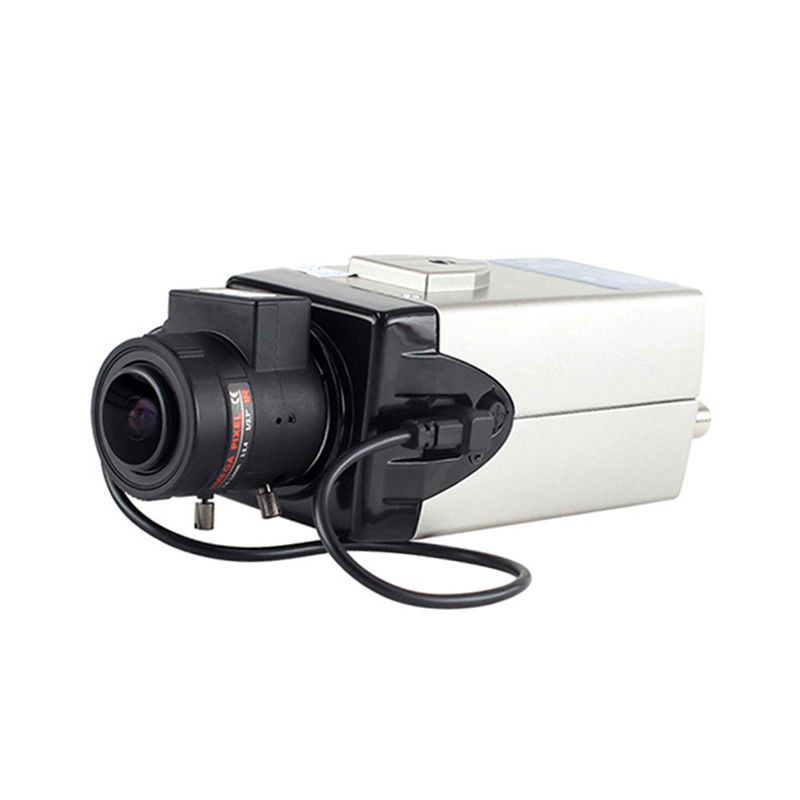

TCHD TC-UV6000 series camera offers perfect functions, superior performance and rich interfaces .The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Technical Specification
|
Model |
TC-UV6000 |
|
|
Camera Parameter |
||
|
Lens (detachable lens) |
2.8-12mm lens 5x zoom 5-60 mm lens 12x zoom |
|
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
|
Effective Pixels |
16: 9 2.07 megapixel |
|
|
Video Format |
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 |
|
|
Auto Iris |
DC driving mode |
|
|
Digital Zoom |
X5 |
|
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
|
|
DNR |
2D & 3D DNR |
|
|
White Balance |
Auto / Manual/ One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/ 6000K/6500K/7000K |
|
|
Focus |
Manual |
|
|
Aperture |
Auto/Manual |
|
|
Electronic Shutter |
Auto/Manual |
|
|
BLC |
ON/OFF |
|
|
WDR |
OFF/ Dynamic level adjustment |
|
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|
|
SNR |
>55dB |
|
|
Input/Output Interface |
||
|
Video Interfaces |
3G-SDI,LAN |
|
|
Image Code Stream |
Dual stream output |
|
|
Video Compression Format |
H.264, H.265 |
|
|
Control Signal Interface |
RS-485 |
|
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
|
|
Audio Input Interface |
Double track 3.5mm linear input; |
|
|
Audio Compression Format |
AAC/MP3/G.7111A |
|
|
5 Control Key |
UP/DOWN/LEFT/RIGHT/CONFIRM keys for OSD setting |
|
|
HD IP Interface |
100M IP port(100BASE-TX); Support VISCA protocol control through IP port. |
|
|
Network Protocol |
RTSP,RTMP,ONVIF,GB/T28181 |
|
|
Power Interface |
HEC3800 power socket (DC12V) |
|
|
Other Parameter |
||
|
Supply Adapter |
AC110V-AC220V to DC12V/1A , POE power supply(optional) |
|
|
Input Voltage |
DC12V±10% |
|
|
Input Current |
400mA(Max) |
|
|
Consumption |
4.8W (Max) |
|
|
Store Temperature |
-10℃~+60℃ |
|
|
Store Humidity |
20% - 95% |
|
|
Working Temperature |
-10℃~+50℃ |
|
|
Working Humidity |
20%--80% |
|
|
Dimension |
126.8mmX55mmX58.6mm |
|
|
Weight |
0.5KG |
|
|
Application |
Indoor |
|
|
Remote Operation (IP) |
Remote Upgrade, Reboot and Reset |
|
|
Accessory |
12V/1A Power supply, User Manual, Warranty card, brackets(optional) |
|
1.Superb High-definition Image
It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps and and 2 channel 1920x1080p with 30fps compression.
2.Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
3.Muti-Format Video Outputs
Multiple interfaces include: 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.
4.Multiple Video Compression
Support H.265/H.264+ video compression; Support compression of resolution up to 1920x1080 with frame up to 60fps.
5.Muti-Format Audio Inputs
Support 8000,16000,32000,44100,48000 sampling frequency, support AAC,MP3,G.711 Audio coding.
6.Multiple Network Protocol
Support ONVIF, RTSP, RTMP ,GB/T28181 protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS),support RTP multicast mode.
7.5 Control Key
UP/DOWN/LEFT/RIGHT/CONFIRM keys for OSD setting
8.Wide Application
Tele-education, lecture capture, Webcasting, Videoconferencing, Tele-training,Tele-medicine, Interrogation and Emergency command systems.
