| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Model Number | 980S 20x |

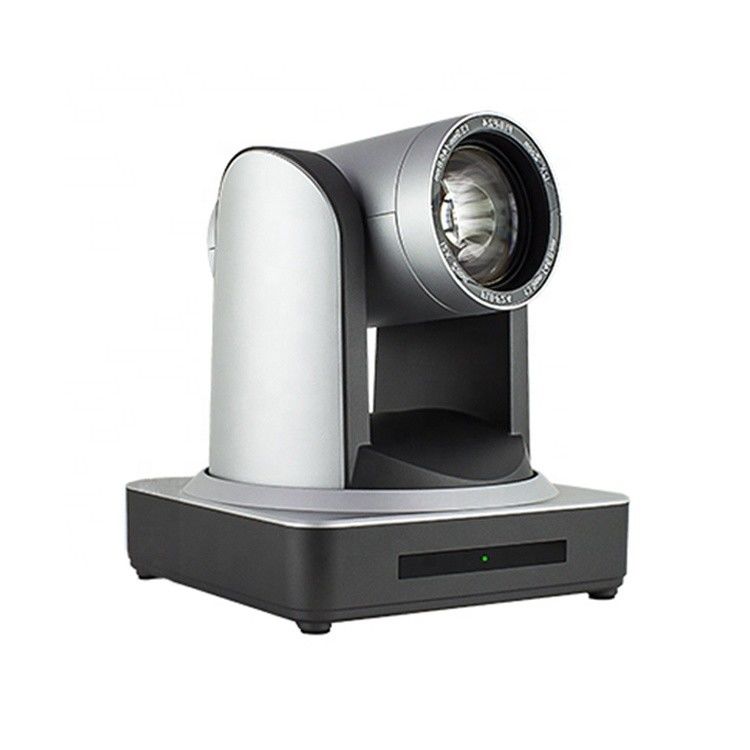

20x zoom1080p60 hd video conference PTZ POE ip camera support NDI with HDMI SDI output
|
TC-980S 12X |
TC-980S 20X |
|
|
Camera Parameter |
|
|
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
|
Effective Pixels |
16: 9 2.07 megapixel |
|
|
Video Format |
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 |
|
|
Optical Zoom |
12X |
20X |
|
|
f=3.9~46.1mm |
f=5.2~98mm |
|
View Angle |
6.3°(tele)72.5°(wide) |
3.2°(tele)55.8°(wide) |
|
AV |
F1.8 – F2.8 |
F1.5 – F3.0 |
|
Digital Zoom |
10X |
|
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
|
|
DNR |
2D & 3D DNR |
|
|
White Balance |
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K |
|
|
Focus |
Auto/Manual |
|
|
Aperture |
Auto/Manual |
|
|
Electronic Shutter |
Auto/Manual |
|
|
BLC |
ON/OFF |
|
|
WDR |
OFF/ Dynamic level adjustment |
|
|
Video adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|
|
SNR |
>55dB |
|
|
Input/Output Interface |
||
|
Video Interfaces |
HDMI, 3G-SDI,LAN |
|
|
Image code stream |
Double streams outputs simultaneously |
|
|
Video Compression format |
H.264, H.265 |
|
|
Control Signal Interface |
RS-232 Ring through RS232 output, RS-485 |
|
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
|
|
Audio input Interface |
Double track 3.5mm linear input; |
|
|
Audio Compression Format |
AAC/MP3/PMC Audio compression |
|
|
HD IP Interface |
100M IP port(100BASE-TX); 5G WiFi (optional), support IP Visca control protocol |
|
|
Network Protocol |
RTSP/RTMP,ONVIF |
|
|
Power Interface |
HEC3800 outlet (DC12V) |
|
|
PTZ Parameter |
||
|
Pan Rotation |
±170° |
|
|
Tilt Rotation |
-30°~+90° |
|
|
Pan Control Speed |
0.1 -180°/sec |
|
|
Tilt Control Speed |
0.1-80°/sec |
|
|
Preset Speed |
Pan: 60°/sec, Tilt: 30°/sec |
|
|
Preset Number |
255 presets (10 presets by remote controller) |
|
|
Other Parameter |
||
|
Supply Adapter |
AC110V-AC220V to DC12V/2A |
|
|
Input Voltage |
DC12V±10% |
|
|
Input Current |
1A(Max) |
|
|
Consumption |
12W (Max) |
|
|
Store Temperature |
-10℃ to +60℃ |
|
|
Store Humidity |
20% - 95% |
|
|
Working Temperature |
-10℃ to +50℃ |
|
|
Working Humidity |
20%--80% |
|
|
Dimension |
150mmX150mmX167.5mm |
|
|
Weight |
1.4KG |
|
|
Working Environment |
Indoor |
|
|
Remote Operation (IP) |
Remote Upgrade, Reboot and Reset |
|
|
Accessory |
Power Supply,RS232 Control Cable, USB3.0 Cable(U3 Model),USB2.0 Cable(U2 Model),Remoter, Manual, Warranty card |
|
|
Optional Accessory |
Bracket |
|
