USB Video Capture Dongle
>
|
| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Model Number | U100Pro |

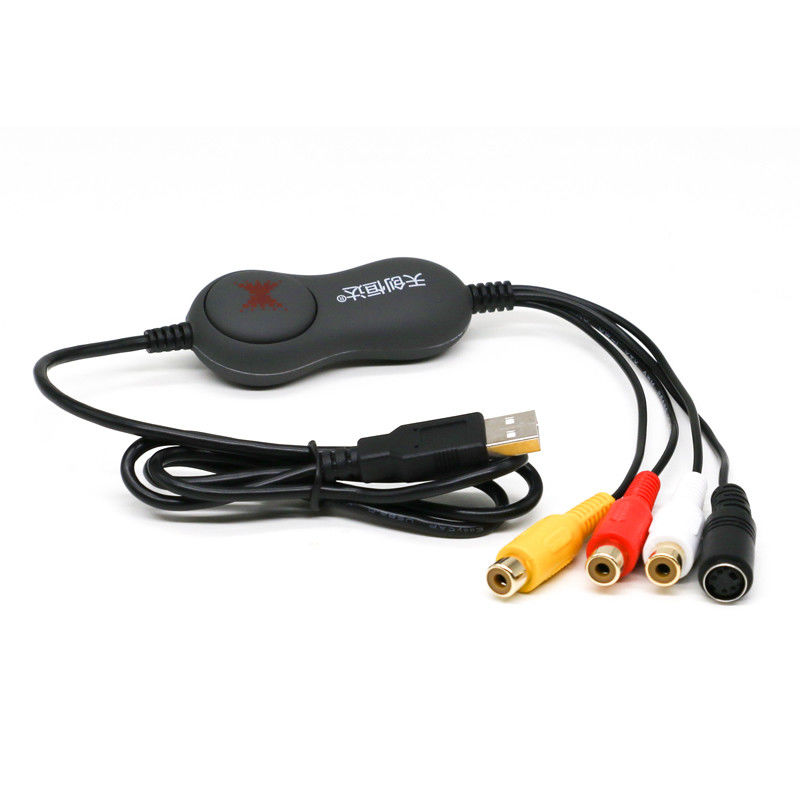

Professional easycap USB2.0 SD capture card
A smart advanced device for Desktop and laptop. Compatible with Windows, Android and Mac OS X.
Easy to convert analog signal video to digital signal, and users could edit their home video on PC. No matter what AV & S-video video device like V8, VHS, HI8, even old videotapes - the image is easily to be sent to PC.
USB 2.0 UVC interface, no need to install any drivers on your computer, just plug into your computer's USB 2.0 port, and system will install drivers for you automatically, no matter your Windows OS or Mac OS.
Specification:
|
Item Name |
USB 2.0 Video Capture |
|
Model Number |
U100Pro |
|
Interface |
USB 2.0 UVC standard |
|
TV System |
PAL, NTSC |
|
Recording Format |
MPEG2 |
|
Converting Format |
AVI-MPEG4,AVI-DIVX,MP4-MPEG4(iPod),3GP-MPEG4,PSP-MPEG4 … |
|
Input |
Composite Video(RCA), S-Video(miniDIN 4pin), Audio L/R(RCA) |
|
Resolution |
NTSC 160×120 ~ 720×480, PAL 160×120 ~ 720×576 |
|
Rate |
NTSC 30fps, PAL 25fps |
|
Power Supply |
USB Bus |
|
Power Consumption |
≤ 1.5W |
|
Cable Length |
80cm(USB), 7cm(Video/Audio) |
|
Dimension / Weight |
73(L)×30(W)×22(H)mm / 67g |
|
Package Contents |
Video Capture device |
|
Windows System Requirements |
One available USB 2.0 port |
|
Pentium4 CPU or above |
|
|
512MB RAM or above |
|
|
Graphics card supports DirectX 9.0C |
|
|
1GB free HDD space |
|
|
CD-ROM for installation |
|
|
DVD-R/RW for burning DVD |
|
|
Windows XP, Vista, 7/8/10 |
|
|
Mac OS X System Requirements
|
One available USB 2.0 port |
|
Power Mac G4 or above, Intel Core Processor |
|
|
512MB RAM or above |
|
|
1GB free HDD space |
|
|
CD-ROM for installation |
|
|
Mac OS X 10.6 or later |
