USB Video Capture Dongle
>
|
| Place of Origin | Beijing, China |
| Brand Name | TCHD |

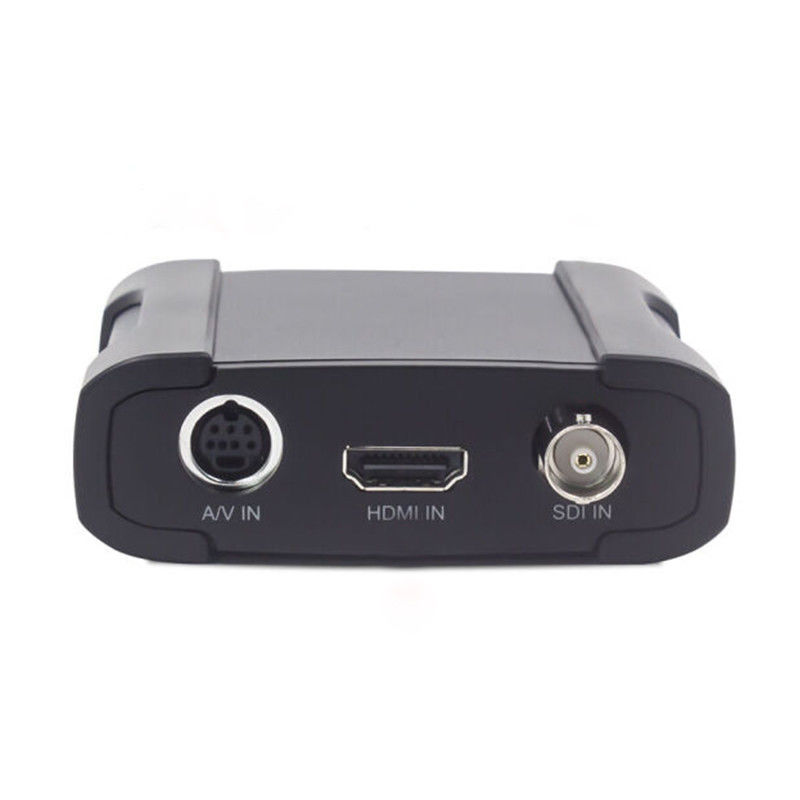

HDMI to USB3.0 need driver hdmi video capture card 1080p
The UB530 External USB3.0 Capture is the simplest and most powerful solution to get your all kinds of video and audio source into your computer. Need driver to install and works with most software on PC allowing live video streaming, webcasting or video conferencing to Skype, Facebook Live, Youtube Live, Livestream, UStream, Dacast, Wowza Cloud and many more.The UB530 External USB3.0 Capture can capture various SD/HD/3G-SD video sources with resolutions up to 1920x1080p@60fps. The UB530 External adopts the USB 3.0 interface, which can realize high-speed transmission.
The UB530 External USB3.0 Capture is the easiest and most affordable video capture device on the market. Extremely small, you can carry to anywhere .Get power from the PC directly and has no need of extra power adapter, which enables it to be carried easily.
|
Model |
UB530 |
|
Max.FPS |
1920x1080p@60/50fps |
|
Recording Mode |
Software Compression,Real-Time Mode |
|
Interface |
USB 3.0 (SuperSpeed USB) |
|
Video Input |
1xSDI,1xHDMI,1xDVI-I,1xYPbPr 1x Composite,1x S-Video |
|
Display Video Format |
YUY2 |
|
Display Video Resolution |
1920x1080p@60/50fps 1920x1080p@30125/24fps 1920x1080i@60/50fps 1280x720p@60/50fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@60fps 640x480p@60fps 720x480p@6Ofps 720x576p@50fps 720x480i@60fps 720x576i@50fps |
|
Recording Video Format |
H.264 (Sofware Compression) |
|
Recording Video Resolution |
1920x1080p@60/50fps 1920x1080p@30/25124fps 1920x1080i@60/50fps 1280x720p@60150fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@60fps 640x480p@60fps 720x480p@60fps 720x576p@50fps 720x480i@60fps 720x576i@50fps |
|
Audio Input |
HDMI Embedded Audio 2xRCA (Audio L/R through component cable) |
|
Audio Format |
Stereo /16-bit /32000-48000Hz |
|
SDK |
VC++ /.NET /VB |
|
System Requirements |
|
|
OS Support |
Windows XP /Vista /Windows 7 or Higher (32-bit and 64-bit ) |
|
HDMI,DVI-D/A,Y/PB/PR input only |
|
