Digital Video Converter
>
|
| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Model Number | Analog2digital |

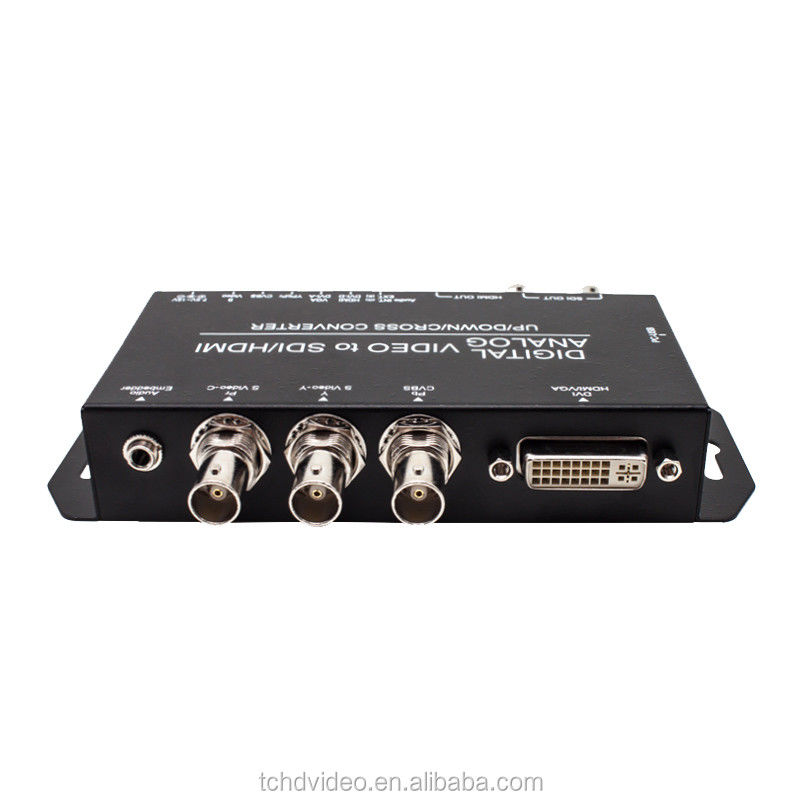

Factory sales plug and play digital to analog signal 1080p digital video converter
TCHD Multi to SDI HDMI video converter is a high-quality, high-performance video signal conversion product. It Supports Support 3 BNC(YPbPr, S-Video, CVBS) + 1 DVI(HDMI/DVI /VGA) inputs and 1channel HDMI + 2 channels SDI outputs.Unlike the traditional converter products in current market, our Multi to SDI HDMI Converter which built in a professional image conversion processing chip, support the user-adjustable to set the saturation / brightness / contrast, and through automatic scaling and frame rate conversion, any input format video signal can be converted to a standard SD/HD/3G-SDI or HDMI signal, compatible with all common analog and digital signal.
|
Multi to SDI/HDMI Up/Down Converter (MULTI to SDI/HDMI) |
|
|
Description |
Convert from DVI-D/VGA or Component/S-Video/Composite to 3G/HD/SD-SDI and HDMI output |
|
Feature |
Built in up/down conversion engine Video enhancement with anti-aliasing and 3D deinterlacer Simultaneous 2 x SDI plus 1 x HDMI output Hot-keys for video mode and device configurations Mini-USB portfor configurations and software upgrade Region of interest Test pattern Test label |
|
Input |
DVI-I x 1(Support DVI-D and VGA) BNC x 3 for Component/S-video/Composite 3.5mm Phone jack for analog audio |
|
Output |
SDIX2 HDMIX1 |
|
Supported Video Input Format |
Composite/SVideo NTSC/PAL Component 480i,576i,480p,576p 720p,1080i,1080p DVI/VGA 800X600@60HZ,1024X768@60HZ,1280X1024@60HZ 1366x768@60Hz,1400x1050@60Hz,1600x1200@60Hz |
|
Supported Video Output Format |
SDI 1080p60/50,1080i60/50,1080p30/25/24,720p60/50 1080p59.94,1080159.94,720p59.94,1080p29.97,1080p23.98 525i,625i |
|
Audio Input Format |
DVI-D(Converted to HDMI): Up to 8 channels,24bit,192KHz 3.5mm Phone Jack: Stereo.24bit,48KHZ |
|
Audio Output Format |
HDMI/SDI: Up to 8 channels,24bit,48KHz |
|
Plug & Play |
YES |
|
DC In |
7.5V-15V |
