| Place of Origin | Beijing, China |
| Brand Name | TCHD |
| Model Number | TC 980S 20X |

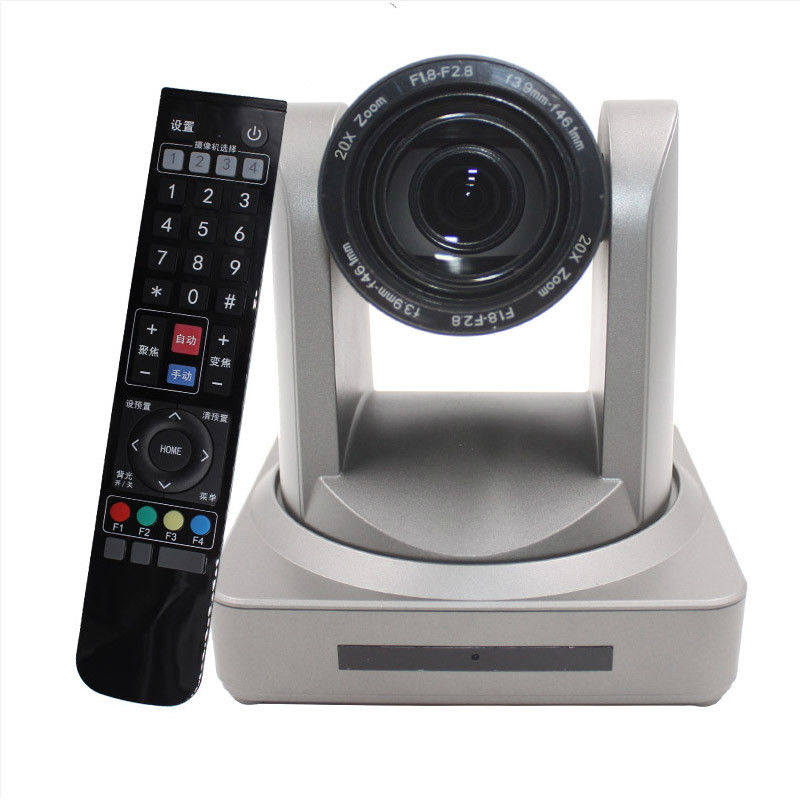

TCHD 20x optical zoom full hd 1920x1080 web conference camera distance learning webcam
Main Features:
.It employs 1/2.8 inch high quality CMOS sensor.Resolution is up to 1920x1080,Multiple lens
20xZoom
.Support HDMI,3G-SDI,LAN interface.
.Leading auto focus algorithm makes lens a fast,accurate and stable auto-focusing.
.Low noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction
technology is also used to further reduce the noise,while ensuring image sharpness.
.Support 16000,32000,44100,48000 sampling frequency and support AAC,MP3,PCM audio coding.
.By adopting step driving motor mechanism,camera works extremely quiet and moves smoothly.
.Support H.264/H.264+ video compression
.Support AAC,MP3 and PCM audio compression; Support compression of resolution up to
1920x1080 with frame up to 60 fps and 2 channels 1920x1080 with 30 fps compression.
.Support ONVIF,RTSP,RTMP protocols and RTMP push mode,easy to link streaming media server
(Wowza,FMS)
.Tele-education,Lecture Capture,Webcasting,Videoconferencing,Tele-training,Tele-medicine,
Interrogation and Emergency Command Systems.
.Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.
|
|
TC-980S 12X |
TC-980S 20X |
|
Camera Parameter |
||
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
|
Effective Pixels |
16: 9 2.07 megapixel |
|
|
Video Format |
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94; |
|
|
|
720P60/50/30/25/59.94/29.97 |
|
|
Optical Zoom |
12X |
20X |
|
f=3.9~46.1mm |
f=5.2~98mm |
|
|
View Angle |
6.3°(tele)72.5°(wide) |
3.2°(tele)55.8°(wide) |
|
AV |
F1.8 – F2.8 |
F1.5 – F3.0 |
|
Digital Zoom |
10X |
|
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
|
|
DNR |
2D & 3D DNR |
|
|
White Balance |
Auto / Manual/ One Push/ 3000K/ |
|
|
|
4000K/5000K/6500K |
|
|
Focus |
Auto/Manual |
|
|
Aperture |
Auto/Manual |
|
|
Electronic Shutter |
Auto/Manual |
|
|
BLC |
ON/OFF |
|
|
WDR |
OFF/ Dynamic level adjustment |
|
|
Video adjustment |
Brightness, Color, Saturation, Contrast, |
|
|
|
Sharpness, B/W mode, Gamma curve |
|
|
SNR |
>55dB |
|
|
Input/Output Interface |
||
|
Video Interfaces |
HDMI, 3G-SDI,LAN |
|
|
Image code stream |
Double streams outputs simultaneously |
|
|
Video Compression format |
H.264, H.265 |
|
|
Control Signal Interface |
RS-232 Ring through RS232 output, RS-485 |
|
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
|
|
Audio input Interface |
Double track 3.5mm linear input; |
|
|
Audio Compression Format |
AAC/MP3/PMC Audio compression |
|
|
HD IP Interface |
100M IP port(100BASE-TX); 5G WiFi (optional), |
|
|
|
support IP Visca control protocol |
|
|
Network Protocol |
RTSP/RTMP,ONVIF |
|
|
Power Interface |
HEC3800 outlet (DC12V) |
|
|
PTZ Parameter |
||
|
Pan Rotation |
±170° |
|
|
Tilt Rotation |
-30°~+90° |
|
|
Pan Control Speed |
0.1 -180°/sec |
|
|
Tilt Control Speed |
0.1-80°/sec |
|
|
Preset Speed |
Pan: 60°/sec, Tilt: 30°/sec |
|
|
Preset Number |
255 presets (10 presets by remote controller) |
|
|
Other Parameter |
||
|
Supply Adapter |
AC110V-AC220V to DC12V/2A |
|
|
Input Voltage |
DC12V±10% |
|
|
Input Current |
1A(Max) |
|
|
Consumption |
12W (Max) |
|
|
Store Temperature |
-10℃ to +60℃ |
|
|
Store Humidity |
20% - 95% |
|
|
Working Temperature |
-10℃ to +50℃ |
|
|
Working Humidity |
20%--80% |
|
|
Dimension |
150mmX150mmX167.5mm |
|
|
Weight |
1.4KG |
|
|
Working Environment |
Indoor |
|
|
Remote Operation (IP) |
Remote Upgrade, Reboot and Reset |
|
|
Accessory |
Power Supply,RS232 Control Cable, |
|
|
|
USB3.0 Cable(U3 Model),USB2.0 Cable(U2 Model),Remoter, Manual, Warranty card |
|
|
Optional Accessory |
Bracket |
|
