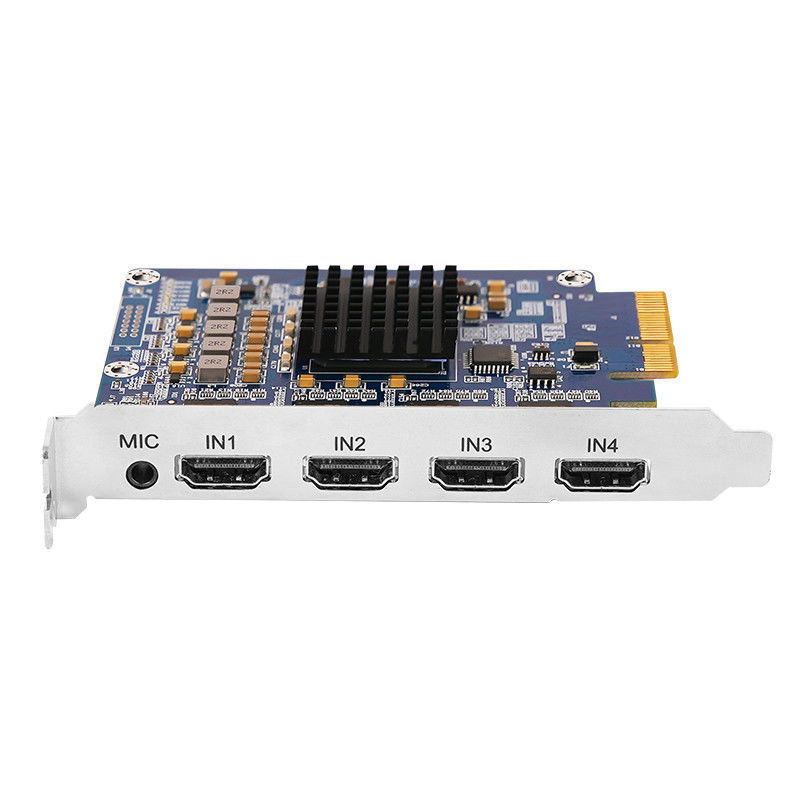

TC200N4 4 Channels 1080P60 PCIe HDMI Video Capture Card Multipurpose

Name: TC200N4 4 Channels 1080P60 PCIe HDMI Video Capture Card Multipurpose
Brand: TCHD
SKU: TCHD
Price: 330.00 USD
Availability: InStock
Rating: 4.9 (192 reviews)

Place of Origin	Beijing, China
Brand Name	TCHD

Product Details

Channels:

Video Compression Format:

H.264

SDK:

SDK Support

Compression Mode:

Software Compression

Support Windows:

Windows

Nature:

1080P60 Live Streaming

Input:

HDMIx4

Output:

HTTP/RTMP/RTSP

Video Encoding:

H.264

Resolution:

1920x1080P60

Type:

PCIe 4U

Application:

Live Streaming, Webcasting,, Video Conference, Game Capture

High Light:

hdmix4 video capture card

Multipurpose video capture card

1920x1080 video capture card

Payment & Shipping Terms

Minimum Order Quantity

2 pieces

Price

$330.00/pieces 2-4 pieces

Packaging Details

Carton box

Supply Ability

500 Piece/Pieces per Month

Product Description

Tiktok facebook meta broadcast webcast vmix live streaming 4 hdmi capture card

Introduction

TC200N4 4 Channels 1080P60 PCIe HDMI Video Capture Card Multipurpose 7

TC200N4HDMI with 4HDMI inputs, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time capture and record 4 channels HDMI video signal simultaneously , preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.

Specification

Interface/dimension
Video input	4×HDMI1.4
Video output	no
Audio inout	4×HDMI1.4 embedded audio
Slot	PCIe×4 (Gen2)
Dimension	120mm×103mm
Video Resolution
SD video resolution	576i50
HD video resolution	720p23.98,720p24,720p25,720p29.97,720p30,720p50,720p59.94,720p60
	1080p23.98,1080p24,1080p25,1080p29.97,1080p30,1080p50,1080p59.94,1080p60
	1080i50,1080i59.94,1080i60
Audio format	stereo 48kHz.16Sbit
HDMI color format	8bit YUV 4:2:2
Color space	REC 601,REC 709,REC 2020
HDMI video sampling	4:4:4,4:2:2 and 4:2:0
HDMI config	HDMI 2.0b support high color depth and HDR
Multi-rate support	HDMI can be switched between SD,HD and DVI format
OS	Windows 7/8/10 /11,64bit
Driver
SDK		Provide C++ SDK and DirectShow
Power
Power consumption		23W
Environment
Working temperature		5-40℃(41°-104° F);relative humidity:0-90%

Main Features

Software Support

TC200N4 4 Channels 1080P60 PCIe HDMI Video Capture Card Multipurpose 8

Applications

TC200N4 4 Channels 1080P60 PCIe HDMI Video Capture Card Multipurpose 9
