| Place of Origin | Beijing, China |
| Brand Name | TCHD |
Factory price HDMI PCIe 4U SDK support broadcasting capture card hdmi

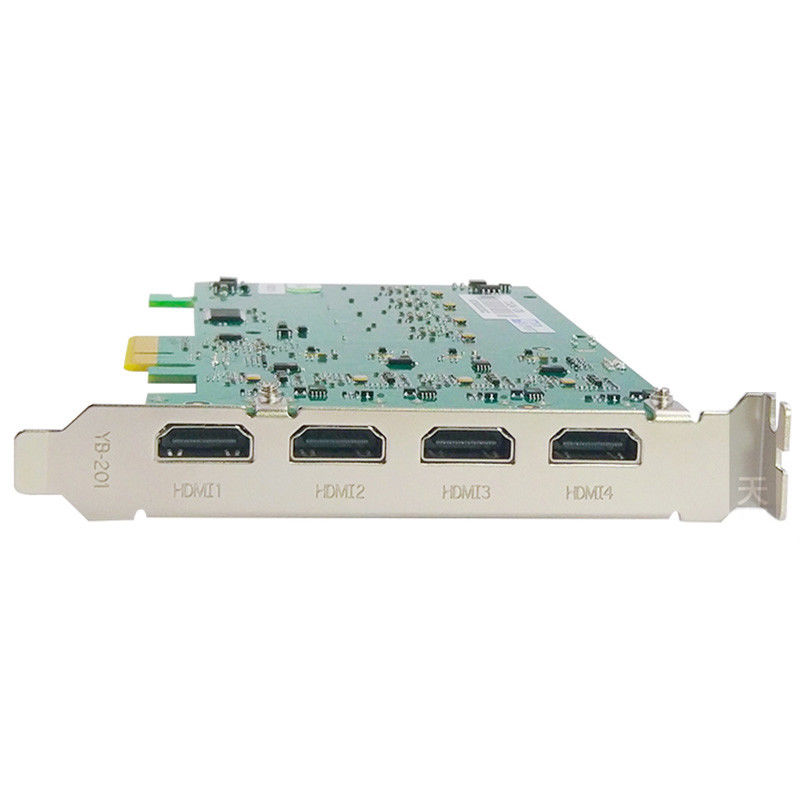

TC542N4HDMI with 4HDMI inputs, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.
|
Max.FPS |
1920x1200p@60/50fps in - 1920x1200p@60/50fps out 1920x1080p@60/50fps in - 1920x1080p@60/50fps out |
|
Recording Mode |
Software Compression,Real-Time Mode |
|
Dimension |
167.65x93.05 (mm) |
|
Interface |
PClex4 (Gen2) |
|
Video Input |
4XHDMI |
|
Video RAW Data Format |
YV12,NV12,YUY2,RGB24,RGB32 |
|
Video RAW Data Resolution |
1920x1200p@60/50/30/25/24fps 1600x1200p@60/50fps 1920x1080p@60/50fps 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/50fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@60fps 640x480p@60fps 720x480p@6Ofps 720x576p@50fps 720x480i@60fps 720x576i@50fps |
|
Recording Video Format |
H.264 (Software Compression) |
|
Recording Video Resolution |
1920x1200p@60/50/30/25/24fps 1600x1200p@60/50fps 1920x1080p@60/50fps 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/50fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@60Ffps 640x480p@60Ffps 720x480p@6Ofps 720x576p@5OFfps 720x480i@60fps 720x576i@50fps |
|
Audio Input |
4xHDMI Embedded audio |
|
Audio Format |
Stereo /16-bit /32000-48000Hz |
|
I/O |
16 |
|
WatchDog |
Yes |
|
Multiple Cards |
∞ |
|
SDK |
Support API: DirectShow,V4L2,FFmpeg,Gstreamer Support Language: C++,C#,.NET,Visual Basic,Qt,Delphi |
|
System Requirement |
|
|
OS Support |
Windows XP/ Vista /Windows 7 Windows 8 /Windows 8.1/Windows 10 Linux 2.6.14 or Higher (32-bit and 64-bit) |
