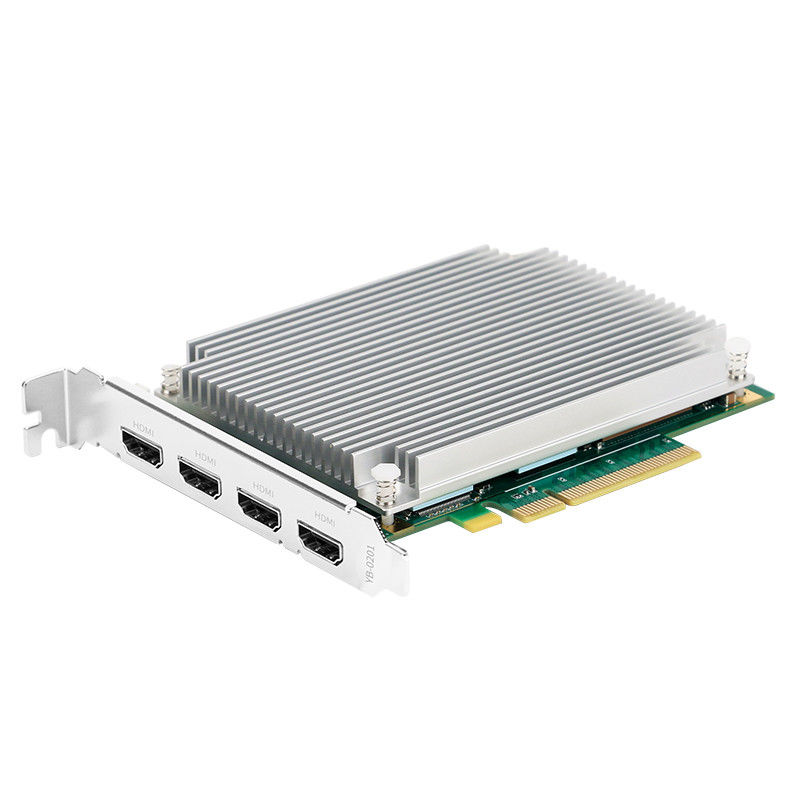

vmix obs broadcasting 4 channel HDMI2.0 4K60p 4:4:4 10bits live streaming video capture card
Real time capture and record 4 channels HDMI 4K video signal simultaneously, each channel resolution up to 4096x2160p60, support both Windows and Linux OS, provide SDK for free
TC720N4HDMI with 4HDMI 2.0 inputs, Real time capture and record 4 channels HDMI 4K video signal simultaneously,each channel support 4096x2160p60 UHD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.
|
Model Name |
TC-720N4 HDMI2.0 |
|
Max. Input Resolution |
4096×2160p@60/50fps |
|
Video recording mode |
Software compression, real-time mode |
|
Video Input |
4×HDMI 2.0 |
|
Dimension |
130.49×101.01 ( mm ) PCIe Full Height |
|
Interface |
PCIe×8 ( Gen2 ) |
|
Feature |
8K60 Quad-Link HDMI2.0 |
|
Video Input Detail |
Single-Link HDMI2.0 Dual-Link HDMI2.0 Quad-Link HDMI2.0 |
|
Color format |
Capture/Preview: 4:4:4 8bit RGB24 4:4:4 8bit RGB32 4:2:2 8bit YUY2 4:2:0 8bit YV12,NV12 4:2:0 10bit P010 |
|
Video Resolutions |
HDMI2.0 4096×2160@60/50/30/25/24fps |
|
Video recording format |
H.264(Software compression) |
|
Audio source input |
4×Stereo Embedded Audio |
|
Audio Format |
Stereo/16-bit/32000~48000Hz |
|
Support Software Application |
Vmix/OBS/ZOOM/Skype/Teams/Discord/Slack/Cisco Webex/GoTo Meeting *DirectShow/V4L2 Compatible Software |
|
SDK |
Windows and Linux SDK |
|
OS Support |
Windows 7 / Windows 8 / Windows 8.1 / Windows 10/ Windows11 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2,NANO,AGX Xavier, Xavier NX |
